Automobile Parts
Precision-engineered automotive components including washers, shafts, and transmission parts manufactured to OEM standards for automotive and heavy-duty vehicle applications.
Product Range

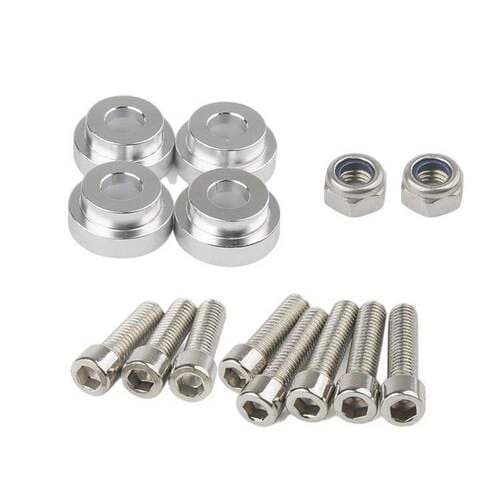

Automotive Washers
Precision flat washers, spring washers, and specialty washers for automotive assemblies.

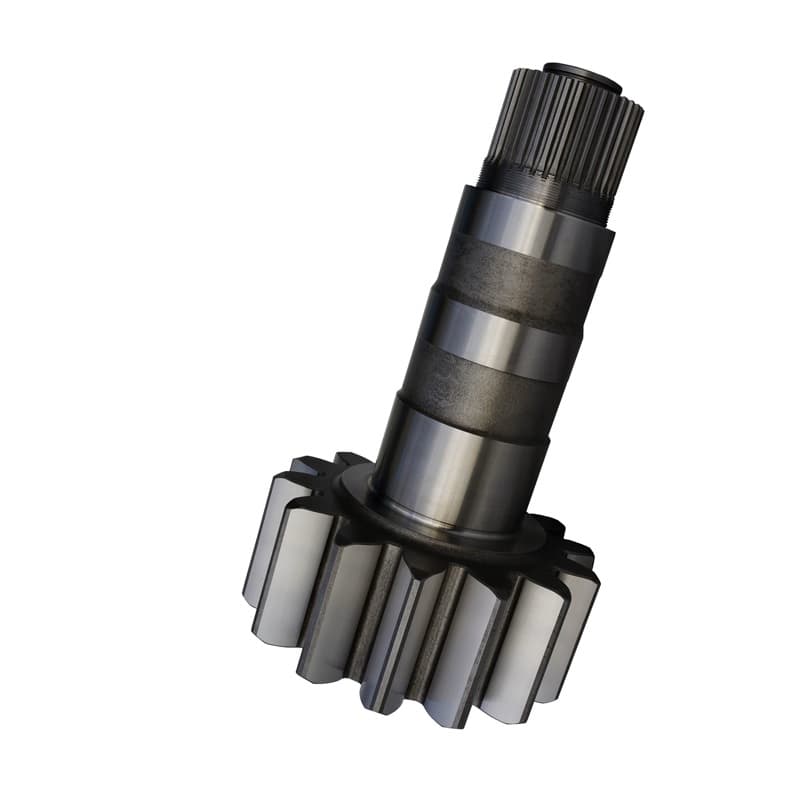

Pinion Shafts
High-strength pinion shafts for differential assemblies and transmission systems.

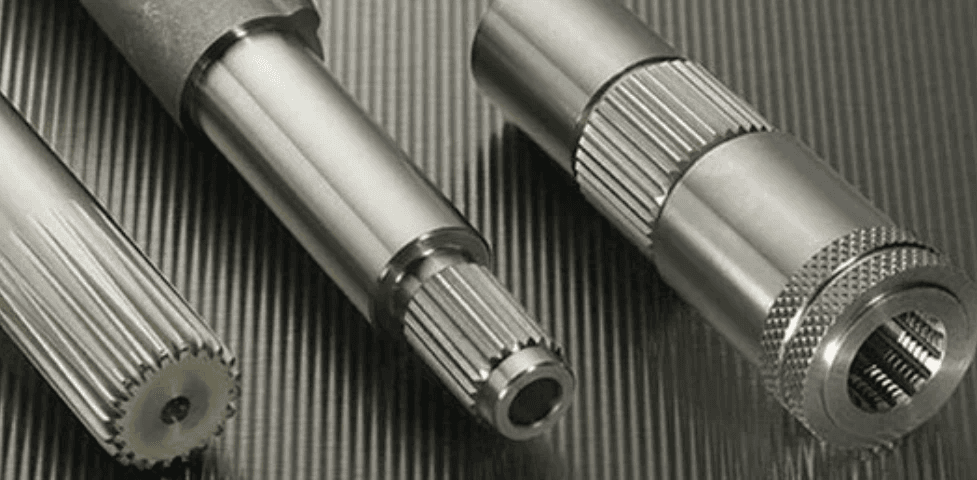

Spline Shafts
Precision splined shafts for power transmission in automotive drivetrains.

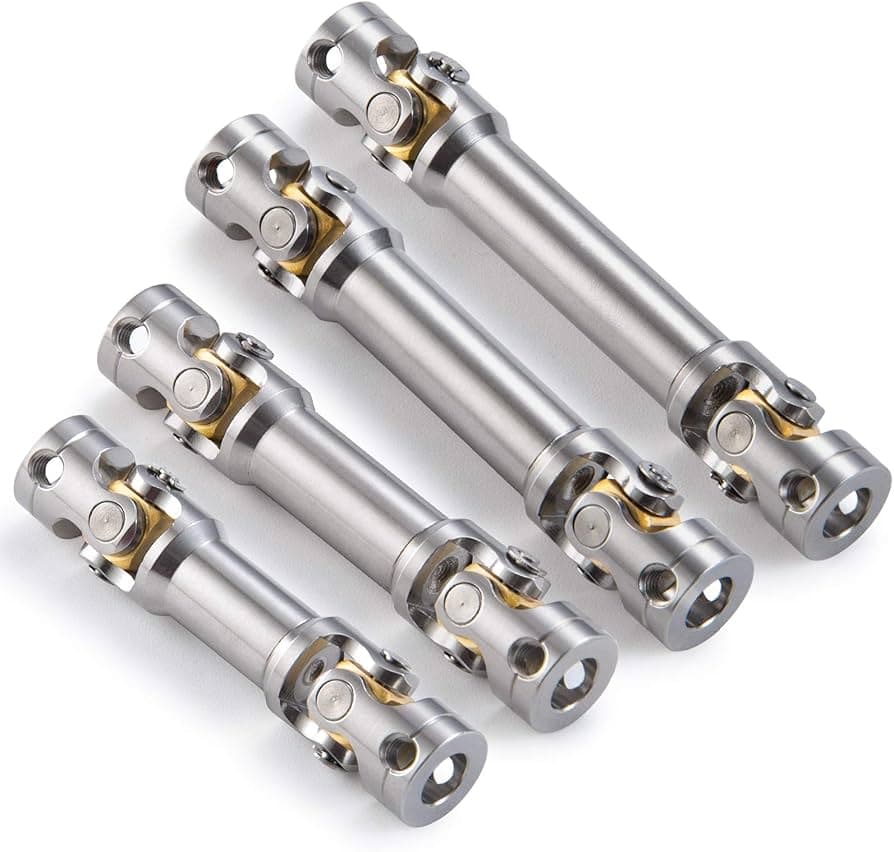

Drive Shaft Components
CV joint components, universal joints, and drive shaft assemblies.

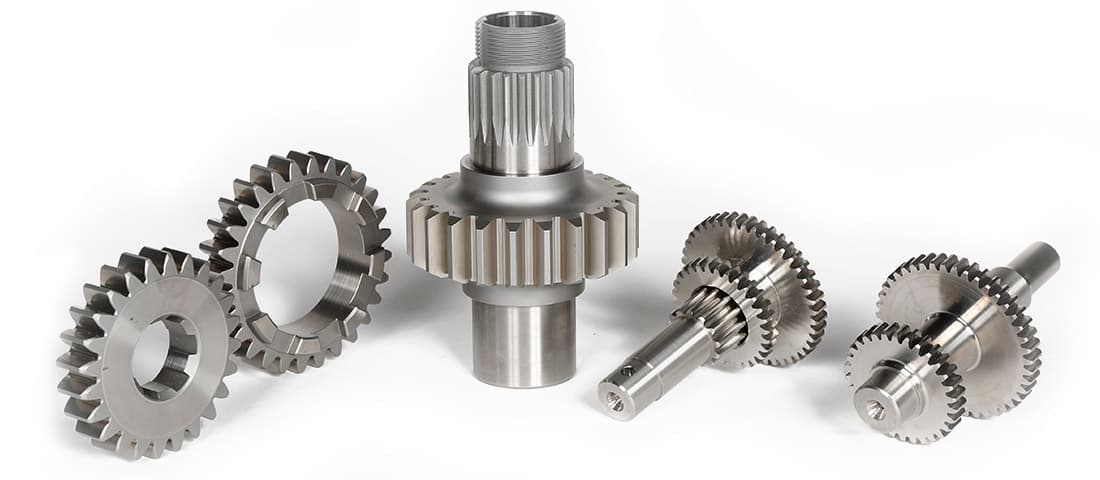

Gear Components
Transmission gears, ring gears, and planetary gear components.
Brake System Parts
Brake rotors, drums, and precision machined brake system components.
Automotive Standards
Quality Standards
- • IATF 16949:2016 Automotive Quality Management
- • ISO/TS 16949 Compliance
- • PPAP (Production Part Approval Process)
- • APQP (Advanced Product Quality Planning)
- • SPC (Statistical Process Control)
- • MSA (Measurement System Analysis)
Material Specifications
- • SAE 4140, 4340 Alloy Steels
- • SAE 8620, 9310 Case Hardening Steels
- • AISI 1045, 1050 Carbon Steels
- • Heat Treatment: Induction, Carburizing
- • Surface Treatments: Zinc Plating, Phosphating
- • Hardness: HRC 28-62 as per application
Manufacturing Capabilities
CNC Turning
Multi-spindle CNC lathes for high-volume production
Spline Cutting
Precision spline cutting and broaching operations
Heat Treatment
In-house heat treatment and surface hardening
Quality Control
100% inspection with automotive-grade equipment
Technical Specifications
Dimensional Range
- • Diameter: 5mm to 150mm
- • Length: Up to 800mm
- • Tolerance: ±0.01mm
- • Surface Finish: Ra 0.8 to Ra 3.2
Spline Specifications
- • Involute Splines: DIN 5480, ANSI B92.1
- • Straight Sided Splines: DIN 5462
- • Tooth Count: 6 to 48 teeth
- • Module: 0.5 to 6.0
Performance Ratings
- • Torque Capacity: Up to 5000 Nm
- • Operating Speed: Up to 6000 RPM
- • Fatigue Life: 10^7 cycles
- • Temperature Range: -40°C to +150°C

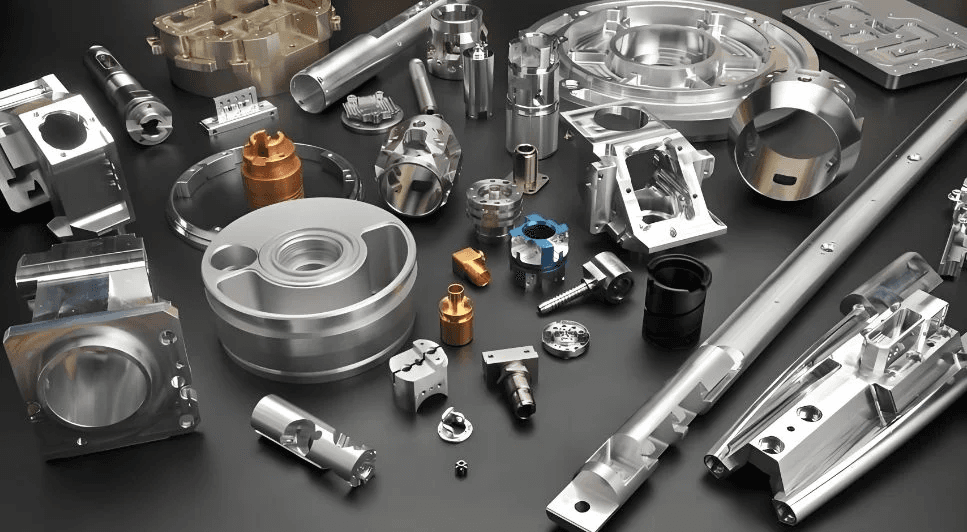

Applications
Vehicle Types
Passenger Cars
Sedans, hatchbacks, SUVs
Commercial Vehicles
Trucks, buses, vans
Heavy Equipment
Construction, mining
Agricultural
Tractors, harvesters
OEM & Tier Supplier Partnerships
Global Supply
Supplying to major automotive OEMs and Tier 1 suppliers worldwide with consistent quality and delivery.
Quality Assurance
PPAP approved supplier with zero-defect manufacturing and comprehensive quality documentation.
Innovation
Continuous improvement and new product development to meet evolving automotive industry requirements.
Automotive Excellence
Partner with us for precision automotive components that meet the highest industry standards. From prototype to production, we deliver quality that drives performance.
